Air Concrete Vibrators VNF 58 mm
Reference: 0.46.817.473
Price
€574.74
They provide a great force to achieve the best possible vibrations of the cement.
42V T40X Vibrator, Ø52, 5m, Markoutsi, 10m Cable, 11A
Reference: 0.46.811.505
MPN: PFVIT40X
In stock 1-3 Working Days
€744.00
Tax included
Thanks to ERGOVIPLUS technology, TECHNOFLEX concrete vibrators maintain a constant speed of 12,000 rpm even when under pressure or submerged in very thick concrete, without any loss of power.
Description

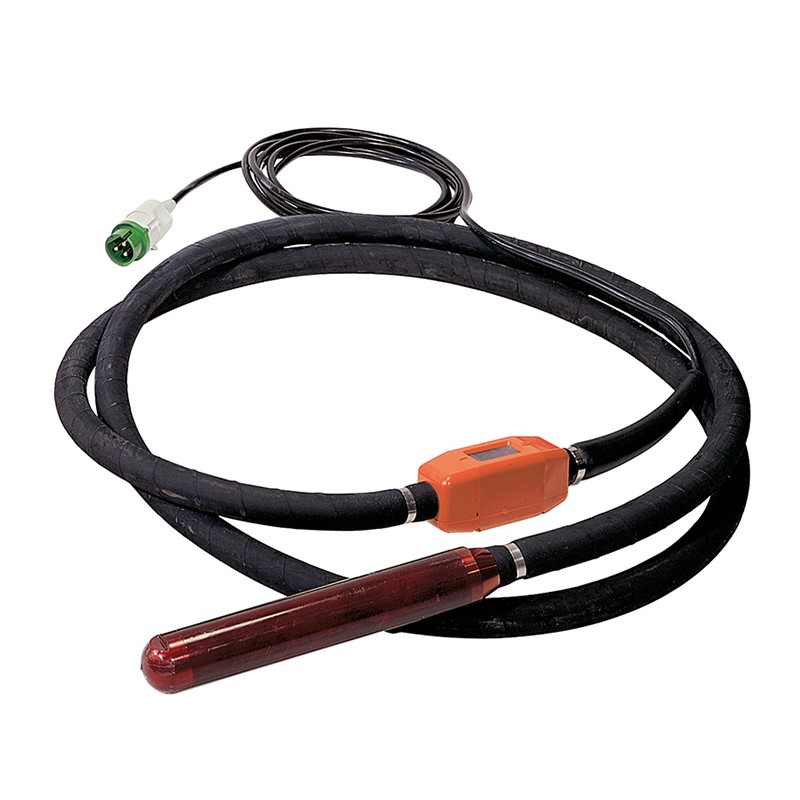

42V T40X F-52 VIBRATOR
FAST VERDINI’s T-X series of high-frequency concrete vibrators are the ideal choice for construction companies and professionals who require maximum power and reliability when compacting concrete.
The main feature of the T40X model is the high-frequency electric motor integrated directly into the vibrator needle.
Technical Specifications
| Technical Specifications | Product Specifications - Model T40X |
| Manufacturer | FAST VERDINI (Made in Italy) |
| Model | T40X |
| Product Code | PFVIT40X |
| Type | High-Frequency Internal Concrete Vibrator (Ergoviplus Series) |
| Vibrator Head Diameter (Bottle) | Ø 52 mm |
| Vibrator Head Length | 395 mm |
| Centrifugal Force | 400 Kg |
| Current Consumption (Amperage) | 11 Amp |
| Operating Frequency (Hz) | 200 Hz |
| Operating Voltage (Volt) | 42 V / 46 V |
| Vibrating Speed (rpm) | 12,000 rpm (revolutions per minute) |
| Compaction Capacity / Output | 15 - 20 m³/h |
| Protective Hose Length | 5 meters |
| Electric Cable Length | 10 meters |
| Vibrator Head Weight | 4.8 Kg |
| Protective Hose Weight | 5.2 Kg |
| Total Weight | 10.0 Kg |
| Cooling & Lubrication Type | Sealed Oil Bath with self-lubricating bearings |
| Waterproof Protection | Completely watertight connection with cable gland |
| Nose/Cap Material | Hardened steel (Threaded/Screwed, not welded) |
Data sheet
- Diameter concrete vibrator
- Φ50
- Vibrations
- 12.000 / min.
Thanks to ERGOVIPLUS technology, TECHNOFLEX concrete vibrators maintain a constant speed of 12,000 rpm even when under pressure or submerged in very thick concrete, without any loss of power.
