Reference: 4.46.720.134
MPN: 34472008
Upon Order Up to 10 Working DaysProfessional dry cutting diamond blade TYROLIT DCM 125x2x22.23mm (315967). High-precision cutting without chipping for marble, fiberglass, and plastics.

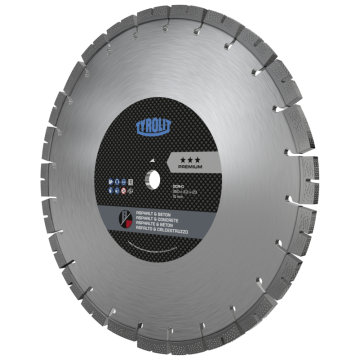

The professional TYROLIT PREMIUM* DCAC diamond blade (item code 34472008) in 350mm diameter with a 20mm bore is the ultimate solution for the road construction and civil engineering industry. It is specifically engineered for cutting asphalt and other highly abrasive materials, offering top-tier cutting speed and maximum durability under heavy-duty use. The standout feature of the DCAC blade is its deep protective segments. These segments extend further down into the steel core, preventing the highly abrasive asphalt dust from washing away the steel base underneath the diamonds (undercutting effect). With a 3.2mm thickness, it ensures a perfectly stable, straight cut with low vibrations, protecting your floor saw or petrol saw.
🔴 Cutting Materials:
Asphalt: Road surfaces, asphalt overlays, and road repair work.
Asphalt over Concrete: Combined road substrates.
Green Concrete: Freshly poured, uncured concrete that is highly abrasive.
Sandstone: Highly abrasive natural sandstones.
Concrete Blocks & Sand-lime Bricks: High-silica or sandy masonry materials.
| Specification | Details |
| Manufacturer | TYROLIT |
| Quality Grade | PREMIUM*** |
| Type / Model | DCAC Dry cutting saw blades (9587) |
| Item Code | 34472008 |
| Disc Diameter | 350 mm |
| Segment Thickness | 3.2 mm |
| Bore Size | 20.0 mm |
| Segment Height | 10 mm |
| Shape / Type | C3W (Segmented with undercut protection) |
| Operation Mode | Dry & Wet cutting |
| Tool Compatibility | Petrol Saws, Floor Saws (with 20mm mount) |
Data sheet
